Cypress Cold Storage
FREEZER/COOLER DISTRIBUTION FACILITY IN SPRINGDALE, AR

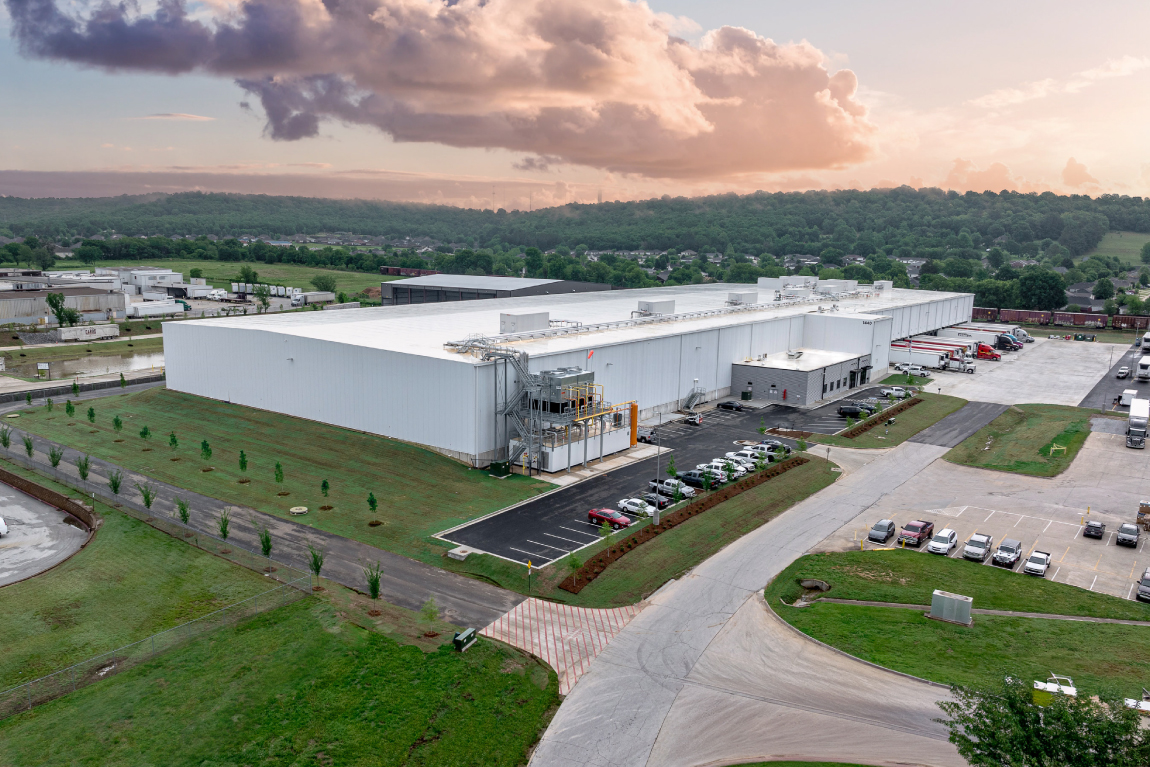

Designed and built for Cypress Cold Storage, this warehouse is a new 207,385-total-square-foot freezer/cooler distribution facility.
This 207,000 SF cold storage facility is designed to provide high-capacity, temperature-controlled storage and distribution. The facility includes a 103,000 SF -5°F freezer, a 26,000 SF -12°F blast freezer with 252 pallet positions and quick freeze capability, and two convertible freezers totaling 31,000 SF, capable of operating between -5°F and 28°F. An additional 9,000 SF convertible freezer maintains temperatures between 15°F and 28°F. Shipping and receiving operations are supported by a 29,000 SF cold dock maintained at 36°F, along with 21 dock positions and one drive-in ramp to optimize product movement.
The building features insulated metal panel exterior construction, a TPO roof system with R-48 insulation, and a 34’6” clear height to maximize storage capacity. Refrigeration is provided by an ammonia refrigeration system with roof-mounted penthouses and prefabricated refrigeration skid coordination, designed to accommodate future rail dock expansion. Electrical infrastructure includes one 3,000-amp service and one 1,600-amp service to support facility operations.
The facility also includes an 8,500 SF office space and over 30,000 cubic yards of import coordination to support the installation of maximum-density racking. The racking system is designed to provide over 22,000 pallet positions, ensuring efficient, large-scale cold storage capacity.
PROJECT STATUS
Complete
SIZE
207,385 Square Feet
INDUSTRY
Cold Storage
”ARCO's ability to provide alternative solutions to improve overall cost-effectiveness and maximize square footage was truly invaluable. For example, ARCO redesigned the building, which resulted in a reduction of square footage by 15,000 square feet while simultaneously enhancing overall building efficiency and pallet position capacity.
Tony NicholsCypress Cold Storage
